Why Does Tape Cutting Precision Matter In Modern Processing Workflows?

Tape cutting often looks simple from the outside. A strip goes in, another strip comes out. In real production environments, the situation feels different. Small shifts in cutting line can change how later steps behave, especially when tape or fabric becomes part of assembly work.

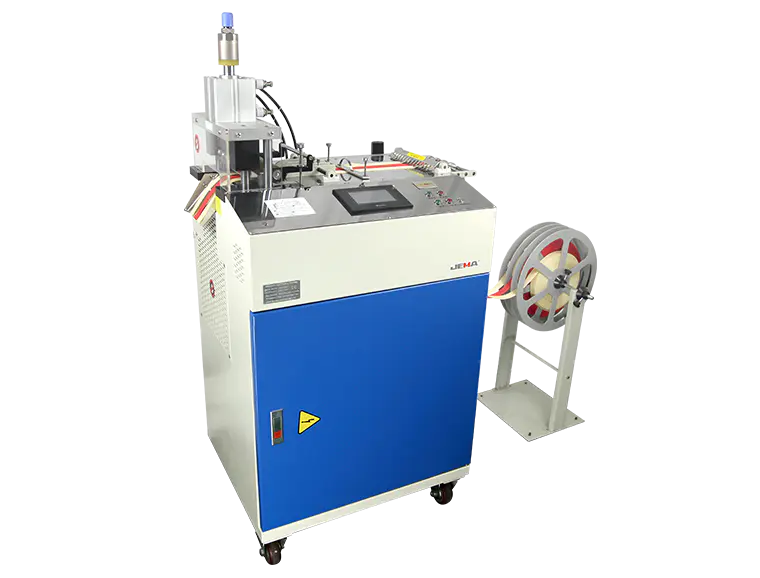

Automatic Ultrasonic Cutting Machine plays a quiet role in this stage. Precision is not only about neat edges. It also affects how materials fit, overlap, or bond in later processes. A slight uneven edge may cause tension differences during sewing or lamination. Over time, that difference becomes more visible in final assembly.

In many workshops, repeated cutting work creates a hidden pressure on consistency. Operators notice that even stable material can behave differently when cutting conditions change slightly. Edge quality starts influencing downstream handling, especially when flexible or layered materials are involved.

Tape, elastic straps, and coated fabrics react strongly to cutting method. Mechanical cutting often introduces pulling force. Ultrasonic cutting behaves differently, focusing energy into vibration rather than direct pressure. That change becomes important when edge stability matters more than speed alone.

What Materials Are Commonly Processed By Automatic Ultrasonic Cutting Machine?

In daily production environments, a wide range of flexible materials pass through ultrasonic cutting systems. Some are light and thin, others have layered structure or coating. Each type reacts in a slightly different way during cutting.

Common materials include:

• Elastic tapes used in clothing and accessories
• Woven straps for binding or reinforcement
• Synthetic fiber belts used in packaging
• Coated textile strips with layered surfaces
• Mixed fiber materials used in flexible assemblies

Elastic materials behave differently compared with rigid ones. When pulled or cut, they tend to stretch before separation. Without stable cutting control, edges may become uneven or slightly frayed.

Coated materials bring another challenge. Surface layers may separate or lift when exposed to mechanical stress. Ultrasonic cutting reduces direct pulling force, allowing separation with less disturbance on outer layers.

Woven structures also require attention. Threads can shift during cutting, especially when tension is not balanced. Vibration-based cutting helps reduce that shifting effect by focusing energy at the cutting point instead of dragging material across a blade.

How Does Automatic Ultrasonic Cutting Machine Work In Cutting Operations?

The working process looks simple from outside, yet inside the system several steps happen almost at the same time. Energy transfer, vibration, and material contact all interact during cutting.

What Is The Basic Operating Principle?

Automatic Ultrasonic Cutting Machine converts electrical energy into high-frequency vibration. That vibration moves through a cutting head and reaches the material surface.

Instead of pressing down like a traditional blade, the cutting head vibrates rapidly. Contact time between tool and material becomes very short in each cycle. That reduces resistance during separation.

The material does not experience strong dragging force. Instead, cutting happens through controlled vibration at a focused point. Fibers separate under repeated micro-movement rather than direct tearing.

How Does Heat Influence Cutting Without Burning?

One interesting point in ultrasonic cutting is heat behavior. Heat exists, yet it stays localized. It does not spread widely across material surface.

Energy concentrates at the cutting point. That localized energy helps loosen fiber connection at the moment of separation. Because contact is brief and controlled, surrounding areas stay stable.

Mechanical cutting often creates friction across a longer surface area. Ultrasonic cutting reduces that contact area significantly. As a result, material edges form with less distortion.

Why Does Ultrasonic Motion Improve Cutting Stability?

Vibration movement creates a repeating separation effect. Each micro-contact reduces resistance between fibers. Over time, material separation becomes smoother.

Key behavior patterns include:

• Reduced pulling force during cutting
• Controlled separation of layered fibers
• Stable edge formation across repeated cycles

In continuous production, stability becomes more noticeable than speed alone. When cutting conditions remain consistent, downstream processes face fewer adjustments.

What Is The Ultrasonic Cutting Process In Continuous Production?

Production environments rarely involve single cuts. Instead, material moves continuously through feeding systems. Cutting happens repeatedly along a guided path.

A typical process flow includes:

• Material feeding into guiding system
• Alignment before cutting point
• Controlled vibration cutting action
• Separation and output collection

Feeding stability plays a large role. If material shifts slightly before reaching cutting head, edge consistency changes. Because of that, many systems rely on guided tension paths.

After cutting, edges remain stable without needing extra finishing in many cases. That reduces handling steps in downstream processing.

How Does Automatic Ultrasonic Cutting Machine Improve Tape Cutting Precision?

Precision improvement comes from multiple small factors working together rather than a single function. Cutting accuracy depends on motion stability, material control, and vibration behavior.

What Factors Affect Cutting Accuracy?

Several variables influence final cutting result:

• Material tension during feeding
• Alignment between cutting head and path
• Stability of vibration output
• Speed consistency during operation

Even small tension variation can shift cutting line slightly. In flexible materials, that shift becomes more visible after cutting.

How Does Machine Stability Support Precision?

Stable vibration output helps maintain consistent cutting behavior. When vibration remains steady, cutting path becomes easier to control.

Material feeding also plays a role. Smooth feeding reduces sudden pulling or slack, both of which can affect edge straightness.

Why Is Edge Quality More Consistent?

Ultrasonic cutting separates fibers through controlled vibration instead of tearing. That difference reduces fraying at edges.

Typical edge behavior:

• Cleaner separation along cutting line
• Less loose fiber formation
• More uniform edge appearance across repeated cuts

What Are The Benefits Of Ultrasonic Cutting In Flexible Materials?

Flexible materials respond strongly to pressure. When force is uneven, shape distortion may appear near cutting edges. Ultrasonic cutting reduces that issue by limiting direct mechanical stress.

Key advantages include:

• Reduced material stretching during cutting
• Stable behavior on elastic structures
• Lower distortion on layered fabrics
• Consistent separation across repeated cycles

Elastic materials, in particular, benefit from controlled vibration. Instead of stretching before cutting, fibers separate more directly. That helps maintain original structure near edges.

How Does Ultrasonic Cutting Machine Manufacturer Influence Machine Performance?

Behind every system, design choices affect long-term behavior. Ultrasonic Cutting Machine Manufacturer decisions shape vibration stability, structure balance, and material compatibility.

Important design factors include:

• Cutting head structure and vibration transmission
• Stability of energy output during long operation
• Adaptation to different material types
• Maintenance access and adjustment design

What Production Challenges Occur In Ultrasonic Cutting Applications?

Cutting in real workshop conditions rarely stays unchanged. Material moves a little differently each time, and feeding does not always stay calm from start to end. Small shifts are normal in long operation, yet they tend to show up at the cutting edge.

Tension change is one of the quiet issues. One side of the tape may tighten slightly while the other side stays loose. The strip still moves forward, though the cut line may not stay perfectly centered. It is subtle at the beginning, more visible later when pieces are compared.

Feeding speed also drifts during long runs. Not a sudden change, more like a slow inconsistency. Once speed changes even slightly, vibration contact behaves differently on the material surface. The edge may still look fine, yet not fully uniform across sections.

Cutting head wear develops slowly. It does not fail suddenly. Instead, contact feel changes little by little after repeated use. That slow shift can affect edge smoothness without drawing attention.

Alignment movement is another factor. Guides can loosen slightly over time. Material then enters the cutting zone at a slightly different angle. Narrow tape shows this more clearly than wider material.

• Common issues seen in production:
• edge line drifting slightly during long operation
• uneven fiber release in layered tape
• feeding tension not fully balanced
• gradual change in surface finish feel

These situations usually appear together rather than alone, especially during continuous work.

How Does Automation Improve Cutting Workflow Stability?

Manual cutting always carries small differences. Hand pressure changes, timing changes, even focus changes across time. That variation becomes part of the output.

Automation removes much of that inconsistency. Once settings are fixed, movement follows the same pattern again and again. No extra adjustment needed between cycles.

Material feeding becomes more controlled as well. Instead of being guided by hand, tape moves through fixed paths. That alone reduces sudden pulling or slack, both of which can disturb cutting edges.

Over longer periods, automation also helps reduce fatigue effect. Human work naturally shifts with time, even when effort stays the same. Machines do not carry that variation.

What usually changes with automation:

• cutting motion repeats in a steady rhythm
• output stays closer across different batches
• feeding becomes smoother and more predictable
• operator influence becomes smaller in the process

The result is not about speed. It is more about reducing small differences that accumulate over time.

Why Is Precision Important In Elastic Material Cutting Applications?

Elastic materials are sensitive. They stretch, recover, and respond to force in a way rigid materials do not. Cutting them requires more control than simple separation.

When cutting is uneven, elastic recovery pulls the edge back in an irregular shape. That shape change may not look large, yet it becomes noticeable during stitching or assembly.

Ultrasonic vibration helps reduce that effect. Instead of pulling the material apart, it lets fibers separate with less resistance. The edge forms with less stored tension.

In daily use situations, that means:

• edge keeps shape better after stretching
• less distortion during recovery movement
• easier alignment during sewing or joining
• more stable behavior in layered products

Elastic tape often shows its weakness only after cutting. Precision helps reduce that weak response.

How Does Ultrasonic Cutting Fit Into Modern Manufacturing Systems?

Modern production is rarely a single step. Material moves through several stages without stopping for long breaks. Cutting sits in the middle of that flow.

Ultrasonic cutting systems fit into this kind of workflow because they keep separation clean and continuous. Material does not need heavy force to pass through cutting point, so flow stays smoother.

The real connection happens in timing. Feeding speed, cutting rhythm, and downstream processes all depend on each other. When cutting remains steady, later steps require fewer adjustments.

Typical integration behavior:

• material enters from feeding system without pause
• cutting happens in continuous motion
• output moves directly into next process stage
• different materials can pass with small adjustments

Flexibility matters here. One system handling multiple material types reduces switching effort between production tasks.

What Role Does Material Feeding System Play In Cutting Accuracy?

Feeding looks simple, yet it controls a large part of cutting quality. If material does not move evenly, cutting cannot stay stable no matter how good vibration is.

Too much tension stretches the tape before it reaches the blade area. Too little tension allows side movement. Both situations disturb the cutting line.

A stable feeding path keeps material centered. It may sound small, yet it decides whether the edge stays straight or slightly off.

Key points that matter:

• steady pull during movement
• guided direction before cutting point
• smooth entry into cutting zone
• minimal side shifting

Flexible materials show feeding problems faster than rigid ones. That is why feeding control is often checked before cutting adjustment.

How Do Different Material Types React To Ultrasonic Cutting?

Materials do not react in the same way. Each structure has its own behavior when vibration is applied.

Elastic tape compresses slightly, then separates cleanly. Woven fabric releases fibers step by step. Coated material depends on how strong the surface layer is bonded.

Mixed materials behave differently across layers. One layer may separate smoothly while another holds a little longer. That difference is normal in layered construction.

Typical reactions:

• elastic type: light compression then separation
• woven type: gradual fiber release
• coated type: surface-sensitive cutting behavior
• mixed type: uneven layer response

Knowing this helps operators adjust expectations rather than force one setting for all materials.

How Does Ultrasonic Cutting Machine Manufacturer Affect System Stability?

Long-term behavior of the machine depends on design choices made during development. Stability is not only about power, it is about how vibration, structure, and control work together.

If vibration transmission stays steady, cutting remains predictable across long operation. If vibration shifts slightly, edge behavior also shifts.

Adjustability matters as well. Different materials require different handling, so systems that allow small tuning changes tend to stay more stable in daily use.

Maintenance design also plays a quiet role. If key parts are easy to access, small corrections can be made without stopping work for long.

Main factors that influence stability:

• vibration consistency during long operation
• flexibility for different material types
• ease of routine adjustment
• structural balance under repeated use

In continuous production, stability often matters more than any single cutting result.

Ultrasonic cutting changes separation from force-based action to vibration-based movement. The tool does not push through material in a rough way. It works through repeated small motion at the cutting point.

Automatic Ultrasonic Cutting Machine keeps that motion steady while feeding material in a controlled path. Precision comes from balance between vibration, feeding stability, and material response.

Over time, that balance shows up in small ways: cleaner edges, fewer irregular shifts, and more consistent results across long production runs, especially when working with flexible tape materials.
