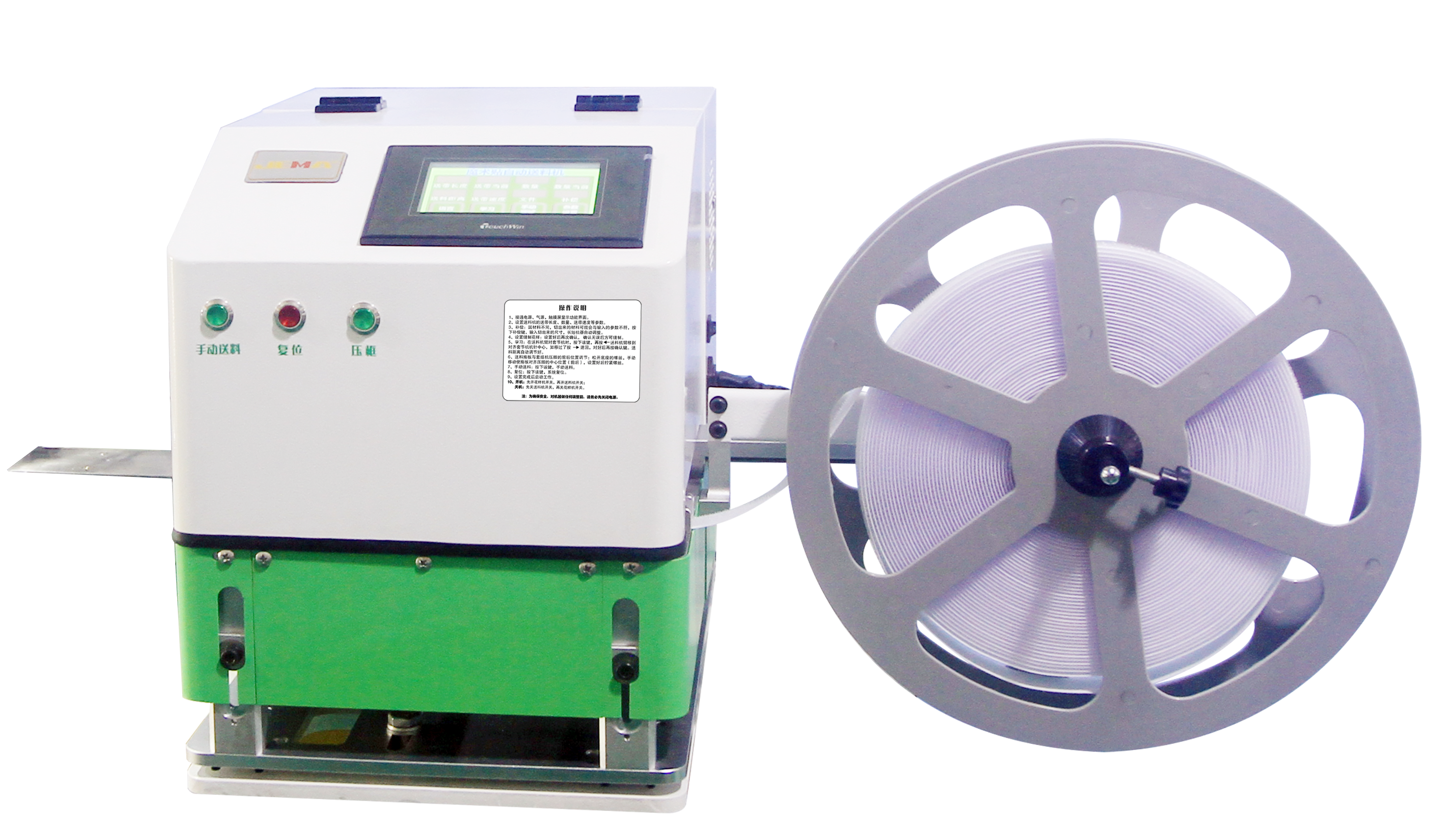

JM-600VD Velcro automatic feeder (lower feeding)

Features:

1. Learning: When the feeder arm is aligned with the position of the presser foot of the knotting machine, press the button ←, and then press the button to move the feeder arm to align with the needle center of the knotting machine. If it moves past the button, return →, and then align it again. Press the OK key. The feeding distance is automatically adjusted. Adjustment speed is fast.

2. Compensation: Due to different materials, the cut material may not match the input parameters. Press the compensation key, enter the actual cut size, and the machine will automatically adjust the error size.

3. Cylinder pressing: The cylinder pressing mode is used. When feeding, because the material will curl, the cylinder automatically presses the material when the material is delivered to the position, so that the material will not move. (Patented product)

4. Blow air: Blow air downward when cutting the tape to prevent the material from rising up, making it easier for the machine arm to press the material.

5. Feeder arm: It adopts stepper motor for feeding, with fast feeding speed, high feeding accuracy, low noise and quick adjustment of feeding distance. (Patented product)

6. Blade and die interchangeability: The right-angled blade can be directly replaced with a die for cutting rounded corners as needed.

7. Integrated design of the whole machine: It adopts integrated mechanical and electronic control design, with small overall size, simple wiring and easy installation.

8. Multiple safety protections.

Scope of application: Velcro.

By replacing the cutting die, sewing at rounded corners, right angles and different angles can be realized. It has a wide range of applications, fast feeding speed and easy adjustment. The Velcro is put into the card slot and is not easy to fall out. Widely used in reflective clothing, bags, carpets, jackets, tents and other factories.

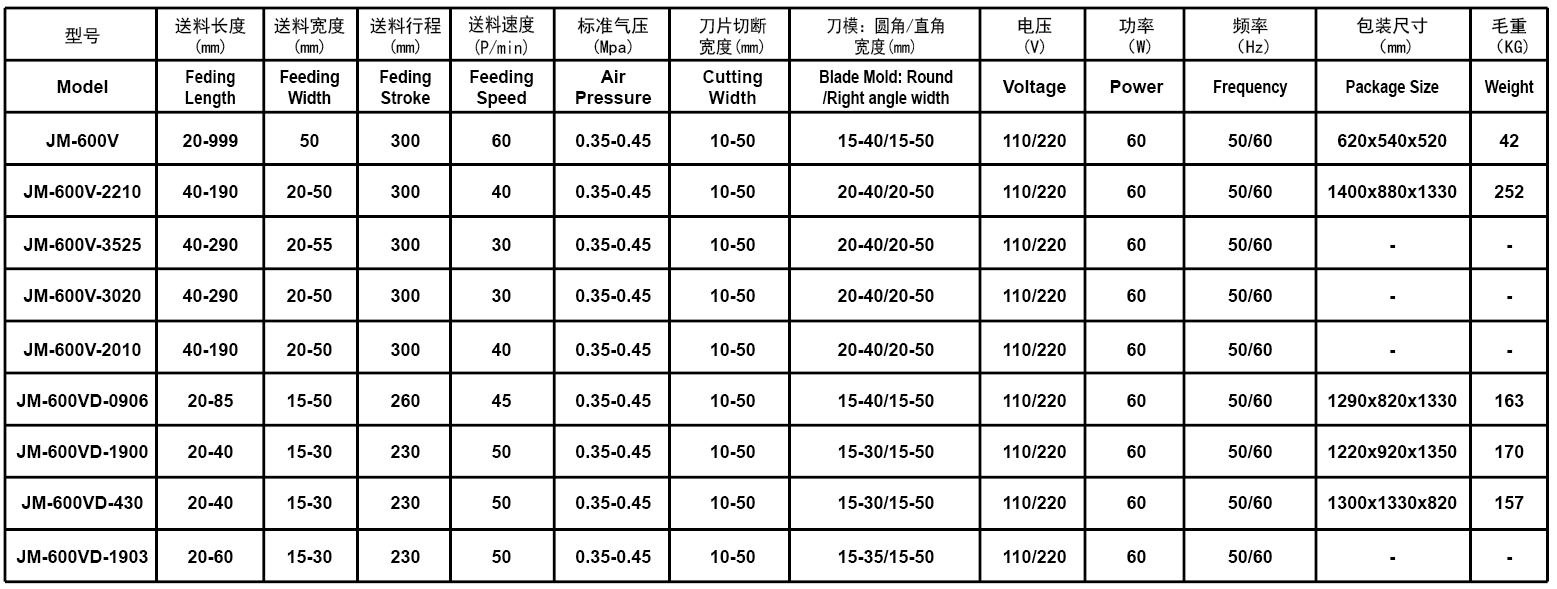

Specification
Product Video

About US

More than 24 years of export experience

As a professional Custom JM-600VD Velcro automatic feeder (lower feeding) Suppliers and OEM JM-600VD Velcro automatic feeder (lower feeding) company in China, Since 1997, Taizhou Jema Sewing Machine Co., Ltd has worked together to continuously innovate and look forward. our JM-600VD Velcro automatic feeder (lower feeding) and other products are very popular at home and abroad, and are favored by all customers with advanced technology, stable quality, reliable prices and preferential prices. It is my progress and your satisfaction is my goal", which drives us forward. We always adhere to the principle of "customer needs as the center, better than promise", and provide multifunctional, high-quality JM-600VD Velcro automatic feeder (lower feeding) and other equipment that meets customer needs and expectations . Welcome customers from all over the world to our company, let us go hand in hand with all faith and dedication.

Why Choose Us

1) Professional manufacturing, leading technology, With advanced technology, stable quality, reliable mechanical performance and preferential prices, it is sold at home and abroad.
2) After more than ten years of focused development and continuous innovation, more than a dozen new products are put on the market every year to meet the needs of users.
3) Advocating quality and service first, We always adhere to the business philosophy of "customer needs as the center, better than promises".
4) Through careful design and precision manufacturing, to provide customers with diverse functions and high-quality JM-600VD Velcro automatic feeder (lower feeding).
5) Science and technology lead the future hand in hand;pays attention to technology research and development, innovates and improves product performance, and hopes that we will work together to create a better future.
* Our Commitment: Free blade grinding for life.
