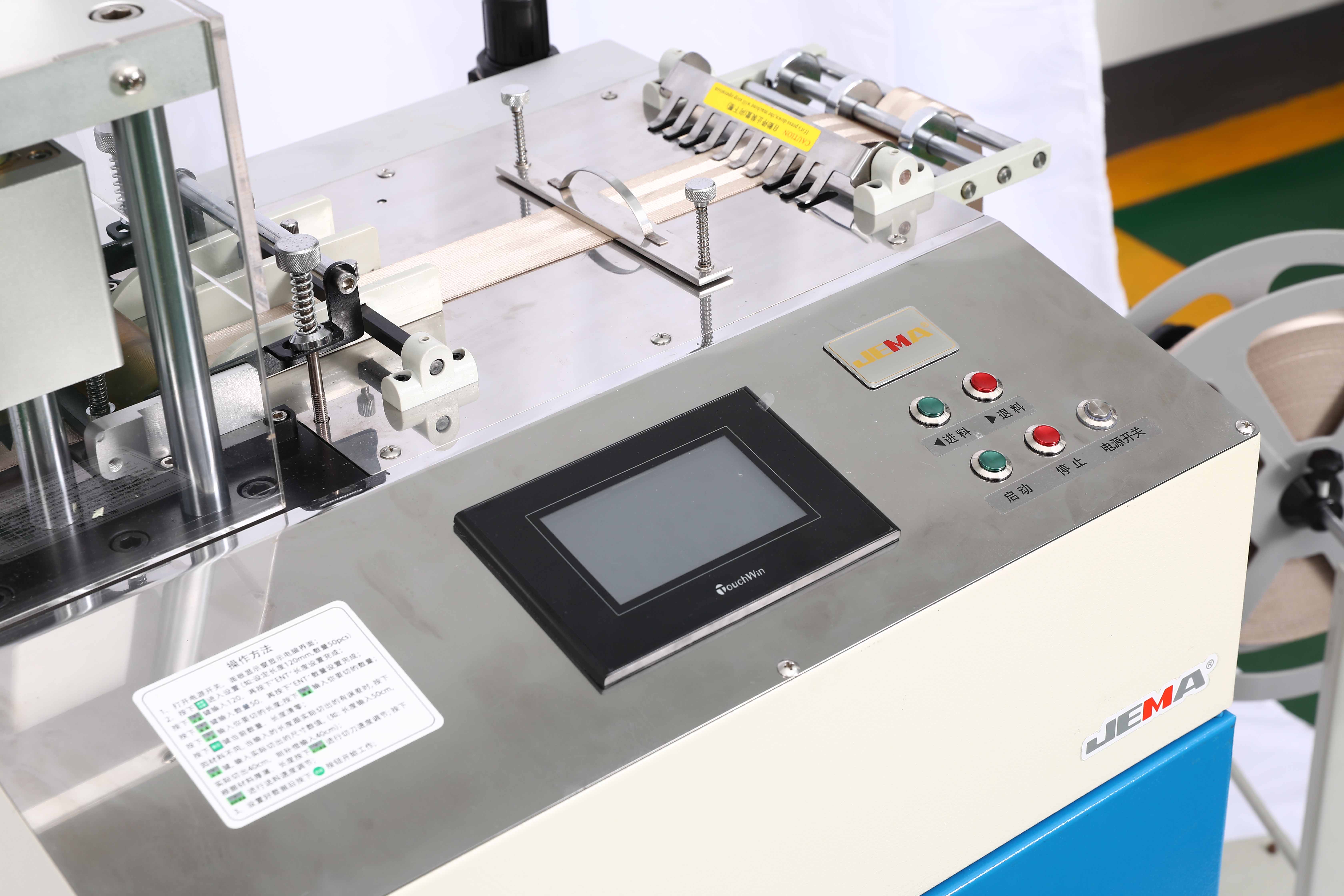

Ultrasonic Computerized Tape Cutting Machine (Right Angle / Corner) JM-2200
  • Ultrasonic Computerized Tape Cutting Machine (Right Angle / Corner) JM-2200
  • Ultrasonic Computerized Tape Cutting Machine (Right Angle / Corner) JM-2200
  • Ultrasonic Computerized Tape Cutting Machine (Right Angle / Corner) JM-2200
  • Ultrasonic Computerized Tape Cutting Machine (Right Angle / Corner) JM-2200

Ultrasonic Computerized Tape Cutting Machine (Right Angle / Corner) JM-2200

Fully automatic cutting, simple operation, wide application range, high cutting quality, smooth cutting surface and no loose wires.
Features
high speed: It can cut 150 pieces per minute (take 50mm length as an example).
High precision: Every cut is monitored by a stepper motor to guarantee high precision every time. The photoelectric sensor can accurately locate the trademark and cut it on the cutting line of the trademark.
Cutter Platform Sharing: On the same cutting platform, different cutting dies can be replaced, such as: right angle, rounded corner, dovetail and other shapes.
Corner function: As long as you input parameters such as length, width, angle, etc., the computer will automatically cut out various shapes you need, such as: rhombus, parallelogram, square, pagoda and other shapes.
Flat cut surface: Using imported high-power and high-efficiency transducers, it can easily cut various thick and thin materials, and the cutting surface is flat, without burrs, and without loose wires.
Automatic operation: Just set the parameters you need such as: cutting length, quantity, angle and so on. The rest of the work computer is done automatically.
Fault self-check: Cutter block, no material, in case of failure, the system will automatically display on the screen.
Auto Pause : Once the material is used up. The system will automatically stop working.
memory function: Before the switch is turned off, all parameters currently set are automatically stored.
Cuttable material
All kinds of woven belt Velcro, shoelaces, zippers, trademarks, all kinds of leather belt materials, etc.
Contact Us
  • Specification
  • Product Video
model Cutting length (mm) 50mm cutting speed (p/min) Maximum cutting width (right angle / bevel angle (mm) Sound frequency (Hz) recommended air pressure
(Mpa)
Voltage (v) Power (kw) sonic power
(kw)
Weight (kg) Chassis packaging size L×W×H (mm)
JM-2200 50-99999 150 100/35 20K 0.4~0.7 110/220 3 2.6 152 860×600×1530
